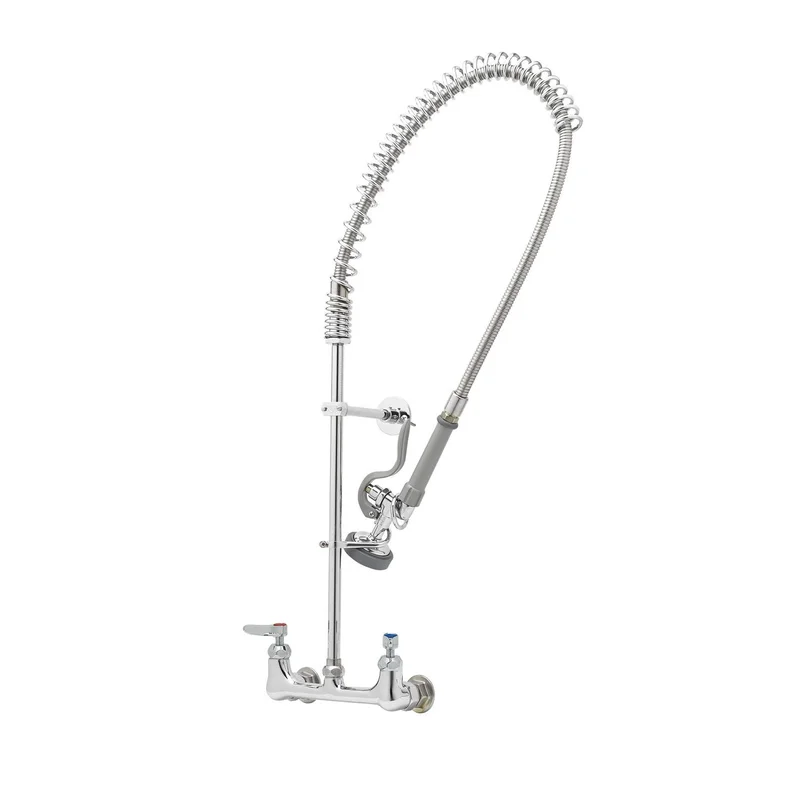

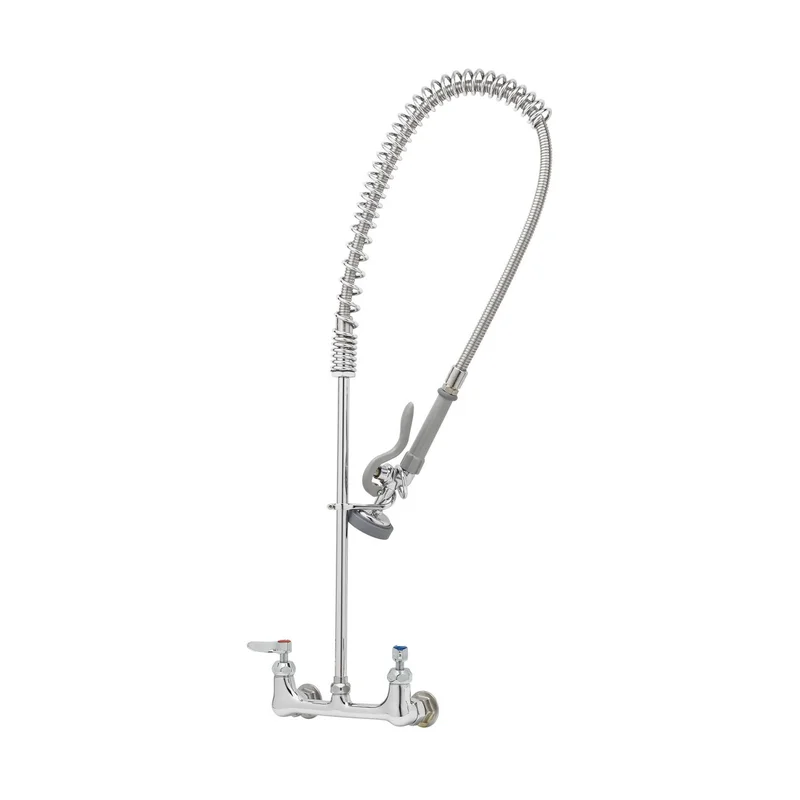

The T&S Brass B-0133-CR-B EasyInstall commercial pre-rinse faucet is a wall mount unit built for dish stations and warewashing areas in restaurants, cafeterias, and institutional kitchens. It ships as a complete assembly with all components needed for straightforward installation on standard 1/2″ NPT plumbing connections.
- Commercial wall mount pre-rinse faucet assembly designed for high-volume dishwashing and warewashing applications in commercial foodservice kitchens
- Polished chrome plated brass body, riser, and spray valve body; 44″ flexible stainless steel hose with heat-resistant handle; chrome plated metal lever handles with color-coded indexes
- Overall height 33-3/8″, overall width 12-5/8″; 18″ riser; 8″ adjustable faucet centers (adjustable from 7-3/4″ to 8-1/4″); 6″ adjustable wall bracket included
- Mounts to standard 1/2″ NPT female inlets; wall bracket secures the riser to the wall for stability; overhead spring returns the hose and spray valve to position after each use
- Quarter-turn Cerama ceramic cartridges with check valves prevent cross-flow between hot and cold water supplies and require no seat washer, reducing maintenance intervals compared to compression-style valves
- 1.15 GPM spray valve (model B-0107) with ergonomic squeeze handle meets 2019 DOE Pre-Rinse Spray Valve Class II requirements; low lead compliant
- Certified to ASME A112.18.1/CSA B125.1
- NSF 61-Section 9 and NSF 372 certified
- cCSAus listed
- 2019 DOE PRSV Class II compliant
Dimensions: 33-3/8″ H x 12-5/8″ W
