Description

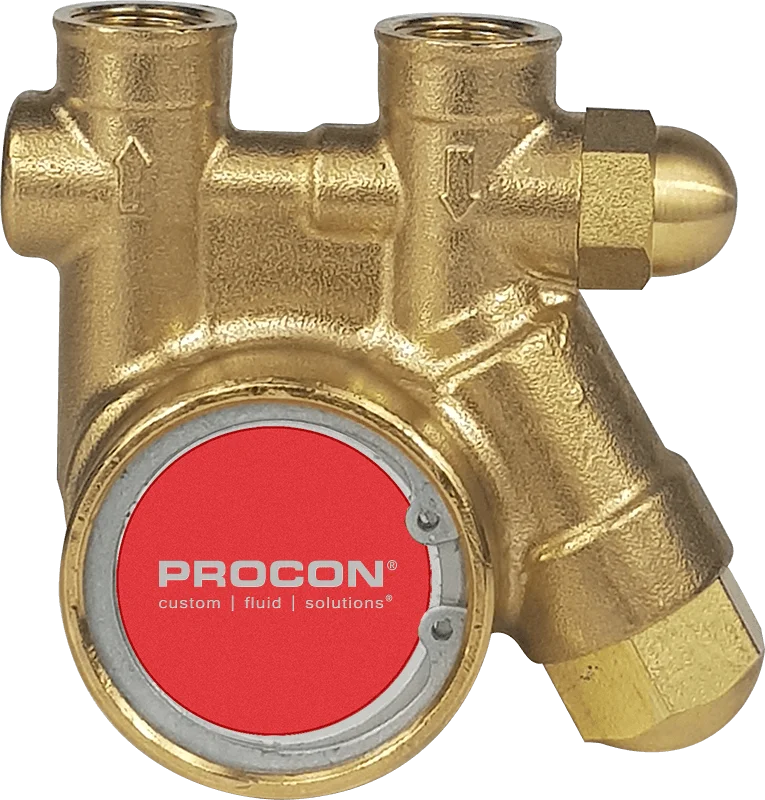

The Procon® 101B070R11BC Series 1 pump with a strainer offers a flow rate of 70 GPH, designed to provide reliable and clean fluid transfer. Its robust construction and integrated strainer make it an ideal choice for applications where fluid purity is paramount.
| Technical Information | Details |
|---|---|
| Material | Brass |
| Port Hole | NPT 3/8″ |
| Integrated Strainer | Yes |
| Mounting Type | Clamp-On |
| Drive Configuration | Slotted With Bronze Coupling 1143 |
| Flowrate (GPH) | 70GPH |
| Flowrate (LPH) | 210LPH |
| Elastomer | Fluorocarbon |
| Seal Type | Non Balances Ceramic/Carbon |
| Rotation | Clockwise |
| Internal Component Material | Carbon |
| Valve Type | Solid- Ultem |
| ValveConfiguration | Standard-Non External adjust |
| Product Weight | 2.4lb (1.09Kg) |
| Operating Range | Details |
|---|---|
| Maximum Mechanical Power Requirement | 0.37hp (276W) |
| Maximum Operating Pressure | 60psi |
| Relief Valve Set Pressure Range | 60 to 99psi (4 to 7 BAR) |
| Max Static Pressure PSI | 100psi |
| Min Operation Fluid Temperature | -4°F |
| Max Operation Fluid Temperature | 160°F |
| Max Fluid Viscosity | 100cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250psi |
| Min Speed | 1000RPM |
| Max Speed | 2400RPM |
| Dry Suction Lift | 3.3ft |
| Wet Suction Lift | 6.6ft |
| Fluid Acidity | 6pH |
| Maximum Total Dissolved Solids (TDS) | 5000ppm |
